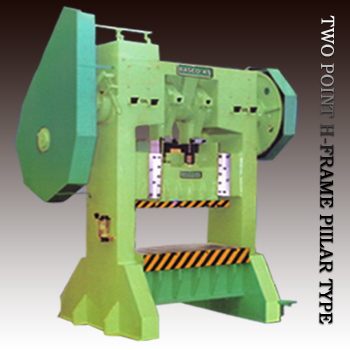

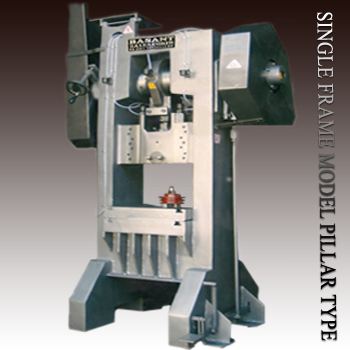

Double Column Piller Type Power Press with Mechanical Rolling Key Clutch

SPECIFICATION OF 'H' Frame Series

CAPACITY
TONES
10
20
30
50 75
100 150
200 250 300
400
500 600

Bed Size LRXFB
MM
325X375 350X375 410X425
500x500 550x550
600x600 700x700
800X800
850X850
900x900
1000x1000 1100x1100 1200x1200

Stroke Std. Adjustable
MM
10 TO 50 10 TO 63 10 TO 75 10 TO 90 10 TO 100 10 TO 110 10 TO 125 10 TO 150 10 TO 175 10 TO 150 10 TO 175 20 TO 175 30 TO 175

Shut Height
MM
235
235 255
280
300 330 375 425 460
485
550
600
650
700

Slide Adjustment MM
40 40 40 50
50
63
63
70 70

Slide Face Opening
MM
32X60
32X75 40X75
50X80
50X85 50X90
50X100 63X100
63X125

Bore in Bed
MM
100 115
125 155
180 205
230 280
305 325
350
375
400

Bolster Plate Thickness
MM
60
65 75
75 100 100
125
125
125 150 150 150 150

Height of Table Surface from Floor MM
615 635
635 690 690 690 710 750 750
750
750
800
800

Stroke Per/Min. SPM
60 60 55
50
45
40
35
30
30
35
30
30
30

Power Required HP/RPM 1/1400 2/1400 3/1400 5/1400 7.5/1400 7.5/1400 15/1400 20/1400
25/1400 30/1440
40/1440
50/1440 60/1440

Pulley Size INCH 5 5 6 6 7 7 4 8 8 9 9 9 9
