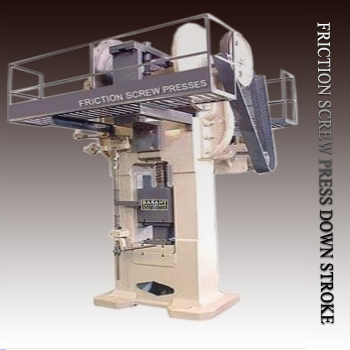

FRICTION SCREW PRESS (DOWN - STROKE)

SPECIFICATION OF FORGING SERIES

Mode	Nominal Capacity in Tones	Dia of Screw of mm	Store Ram mm	Number of Strokes Per/Min.	Size of Table in mm	Max. Distance Between Table & Ram in mm	Min. Distance Between Table & Ram mm	Dia of hole in the Table mm	Power Required H.P./R.P.M.
BSC	30	75	150	30	325X350	300	175	75	3/1440
BSC	50	115	175	25	325X400	325	175	80	5/1440
BSC	100	132	250	20	400X450	450	200	100	10/1440
BSC	150	155	275	18	450X500	475	225	118	15/1440
BSC	200	165	300	15	450X525	500	250	125	20/960
BSC	300	200	350	12	50X160	580	280	140	25/960
BSC	400	225	375	10	600X700	600	300	150	30/960
BSC	630	250	400	8	710X810	660	355	150	40/960

OPTIONAL ACCESSORIES:-

›› Automatic Lubrication System
›› Inclining Mechanism (for inclinable presses)
›› Bar Ejector System in Slide. (Ram)
›› Fly-Wheel Guard
›› Inclining Mechanism (for inclinable presses)
›› Bar Ejector System in Slide. (Ram)
›› Fly-Wheel Guard
›› Non Repeat Stroke Mechanism (for mechanical rolling key clutch)
›› Bolster to Build Individual Requirements
›› Slide Counter Balance
›› Die Cushion
