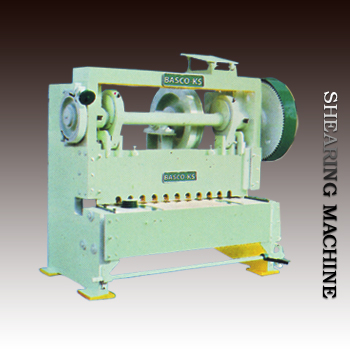

Sheet Cutting Shearing Machine
(Over Crank Model)

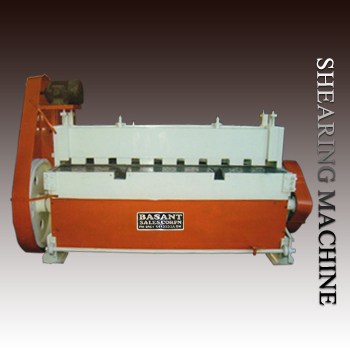

Sheet Cutting Shearing Machine
(Under Crank Model)

SPECIFICATION OF SHEARING MACHINE (Over Crank Model)

Technical Data	Model	BSC-1 OC	BSC-2 OC	BSC- 3 OC	BSC-4 OC	BSC-5 OC
Shearing Length	mm	1250	1500	2000	2500	3000
Shearing Capacity	mm	6,8,10,12	6,8,10,12	6,8,10,12	6,8,10,12	6,8,10,12
Depth of Gap in Frame	mm	150	150	150	150	150
Max. Back Gauge Adjustment	mm	25-600	25-600	25-600	25-600	25-600
Size of Blade (Blade Segments)	mm	1270x75x18/25	1550x75x18/25	1025x75x18/25	1270x75x22/25	1050x75x18/25
Length of Cut in One Stroke	mm	1250	1500	2000	2500	3000
No. of Strokes per minute	No.	50	50	50	50	50
Power Required	HP/RPM	5, 7.5,10,15 /1440	7.5,10,15 /1440	10,12.5,15,20 /1440	10,15,20,25 /1440	15,20,25,30 /1440
Approx. Floor Area Required
Length x Breadth x Height	mm	2300x2000x2150	2600x2000x2150	3000x2400x2400	3650x2400x2400	4100x2600x2600
